Products Introduction

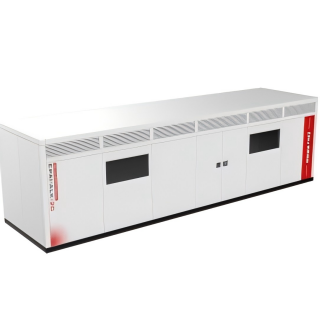

HP-ALK-60.0kg Alkaline Hydrogen Peroxide Generator employs the two-electron oxygen reduction reaction (2e⁻ ORR) as its core principle, utilizes sodium hydroxide as the electrolyte and water and oxygen as primary raw materials, and produces alkaline hydrogen peroxide solution. This equipment is specifically designed for bleaching processes in paper mills and textile factories., achieving an hourly production capacity of 2000L of hydrogen peroxide solution (3% concentration).

Product Features

01

Labour-saving: Concentration automatically regulated, eliminating manual dilution and preparation;
02

Low energy consumption: Innovative material and stack design achieve energy consumption as low as 3.3 kWh/kg;
03

Cost-effective: When electricity costs fall below 0.5 yuan/kWh, production costs are comparable to the anthraquinone process.
04

High purity: The product is free from impurities, boasts high purity, excellent stability, and superior bleaching efficacy.
05

Adjustable: Concentration controllable within a 0.1–3 wt% range by modulating settings such as current density and electrolyte composition.

Product Technical Parameters

Item	Specifications
Hydrogen peroxide production capacity	60kg/h（Calculated by 100% consistency）
Output hydrogen peroxide concentration	2.8%-3.2%
3% Hydrogen peroxide yield	2000L/h
Equipment power	240kW（Excludes energy consumption of oxygen generators and water purifiers）
Equipment dimensions	L13.0×W2.2×H2.6m
Input water requirements	Flow≥3m³/h, Pressure ≥0.3MPa，Conductivity ≤5μS/cm，
Oxygen supply requirements	Pressure ≥2bar，Purity≥90%，Flow ≥50m³/h
Electrolyte requirements	Ionic membrane method Sodium hydroxide，Concentration ≥25%
Ambient temperature	5-40℃
Ambient humidity	0-85%RH
