Refrigerator Application: EP-OR Electrochemical Oxygen Removal Module
Household Appliance Solutions
奕湃
Products Introduction

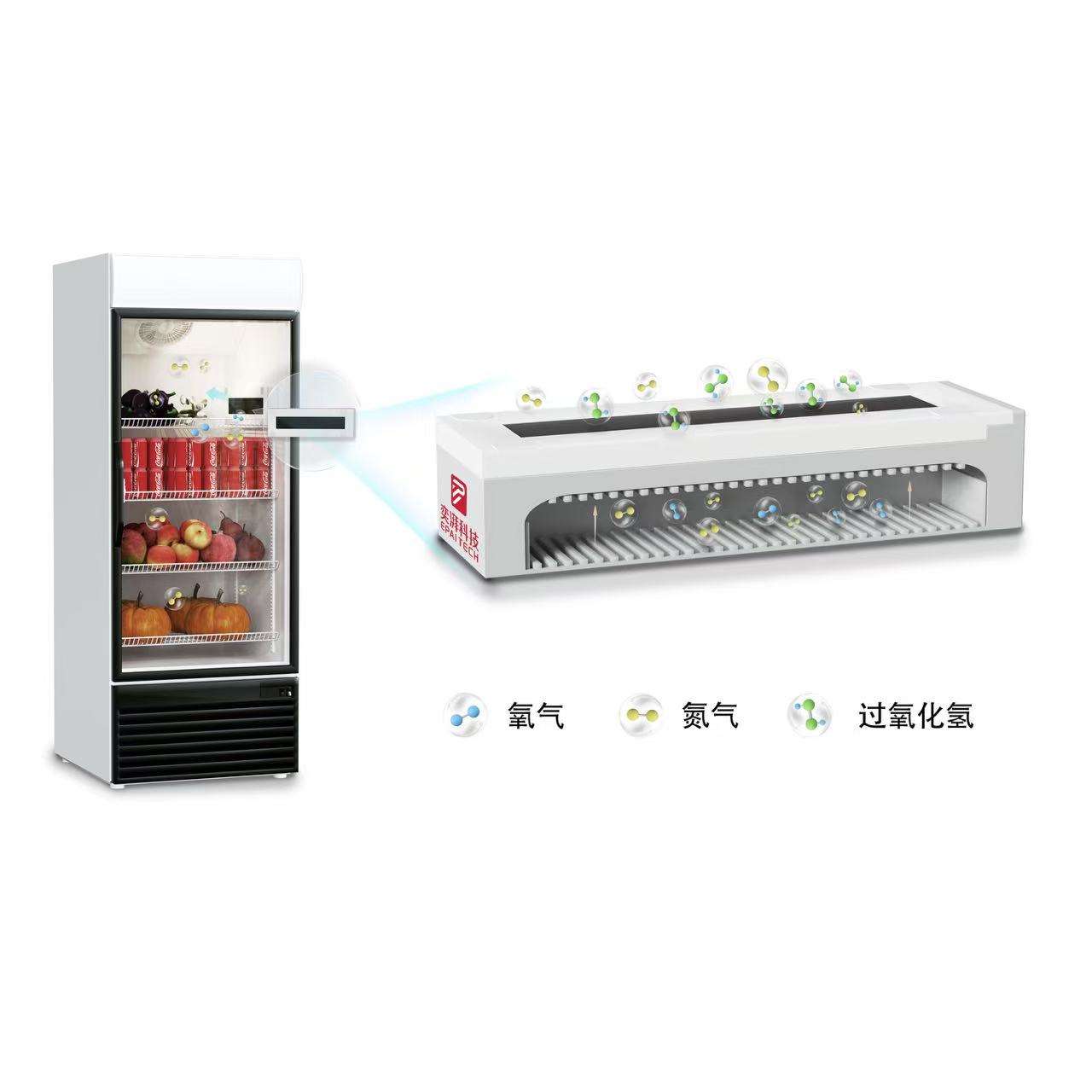

This module uses a compact integrated electrochemical design to drive oxygen at the catalytic anode to undergo a two-electron reduction reaction (2e⁻ ORR), continuously consuming oxygen inside the refrigerator. It actively creates a low-oxygen environment that suppresses oxidation and microbial growth. The reaction produces a safe and broad-spectrum active inhibitory agent—hydrogen peroxide—achieving coordinated preservation by “active oxygen removal” and “in-situ microbial inhibition.”
Product Features
  • 01
    0 Consumables, Low Cost: No additional chemicals needed; oxygen removal is achieved continuously via electrochemical reaction.
  • 02
    Highly Efficient and Precise Oxygen Control: Maintains a stable low-oxygen environment inside the refrigerator, reducing oxidation and prolonging food freshness.
  • 03
    Continuous Low-Noise Operation: Compared with traditional airflow methods, electrolysis produces minimal noise while keeping a consistent low-oxygen environment.
  • 04
    Multiple Design Options: Offers various module designs for flexible installation and oxygen reduction applications.
  • 05
    Compact and Easy to Integrate: Convenient for installation in limited refrigerator space, minimizing cost and complexity.
Product Technical Parameters
ItemSpecification
Control Accuracy≤6% (60 min)
Response Time60 min
Module DimensionsL200 × W80 × H50 mm
Applicable Volume≤50 L
Operating Voltage12 V
Ambient Temperature0–40 °C
Ambient Humidity≤85 % RH
