Products Introduction

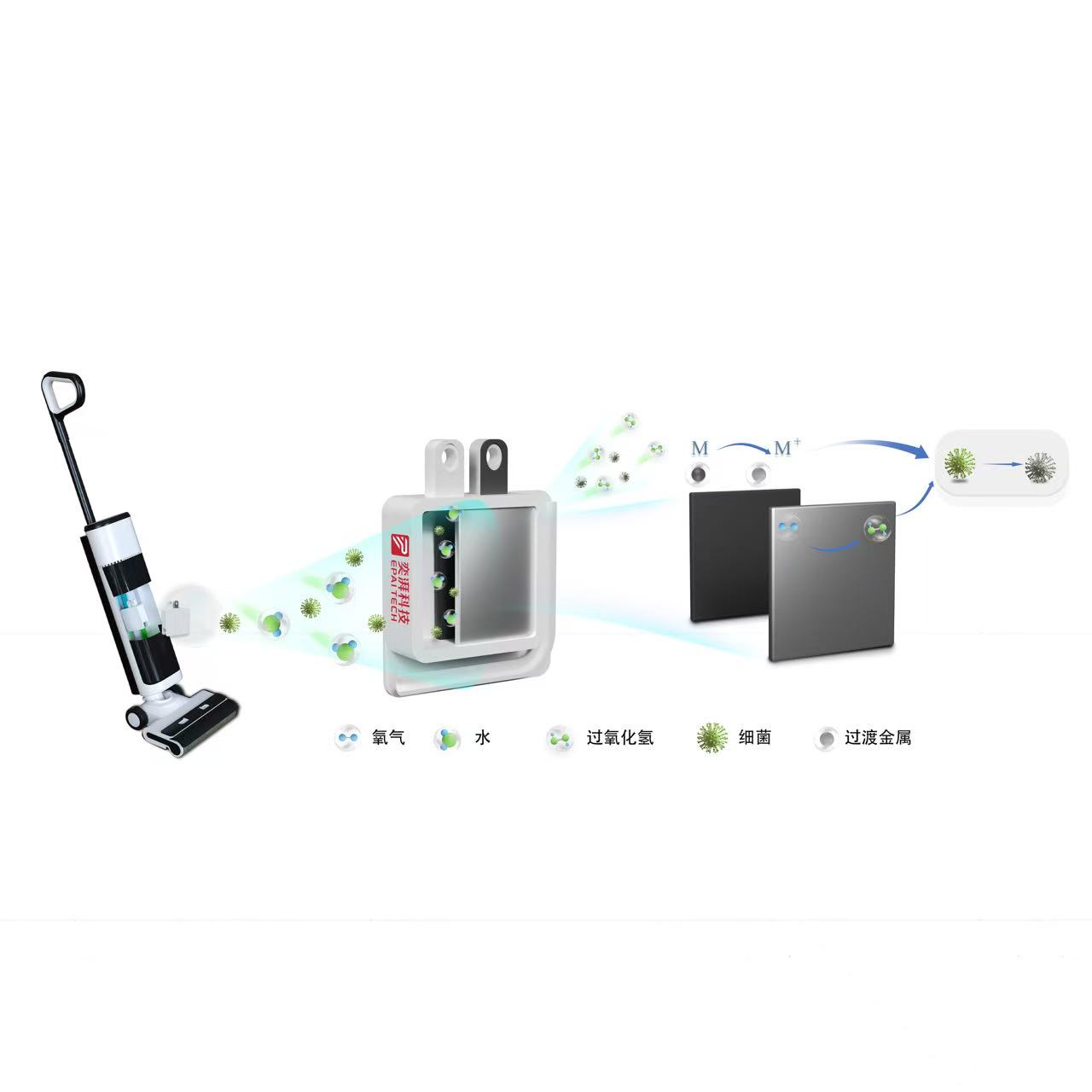

Transition metal ions are slowly released through the anodic electrochemical reaction, while the cathode utilizes two-electron oxygen reduction (2e-ORR) technology as its core principle to generate active ions that combine with H₂O to form a bactericidal solution. These active ions enter the sewage tank, where they inhibit bacterial growth and help reduce odors to a certain extent.

Product Features

01

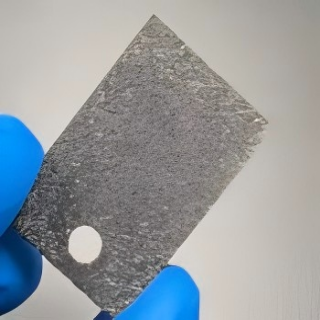

No consumables, low cost: An independently developed electrode system enables the anode and cathode to work in synergy to generate H₂O₂, and transition metal ions, thereby forming a composite disinfectant solution.
02

No residues, no odours: Hydrogen peroxide is the most environmentally friendly disinfectant; its final decomposition products are merely water and oxygen.
03

High water compatibility: Overcomes the limitations imposed by chloride ion concentrations in water, allowing for higher concentrations of active agents.
04

Low cathode scaling: An innovative fence-type module structure effectively inhibits cathode scaling.
05

Slow-release, long-lasting antibacterial action: Transition metal ions act as long-lasting, cyclical antibacterial agents, unaffected by light exposure or organic matter concentrations.
06

Synergistic effect: Transition metal ions work in synergy with hydrogen peroxide to produce a ‘1+1>2’ effect, ultimately achieving the perfect combination of ‘rapid disinfection’ and ‘long-lasting antibacterial protection’.

Product Technical Parameters

Item	Specifications
Hydrogen Peroxide Concentration	1–5 mg/L
Active Ion Concentration	0.04 mg/L
Operating Voltage	12 V
Applicable Flow Rate	10–50 mL/min
Suitable Water Type	Municipal Tap Water
Main Function	Disinfection, Long-lasting Bacteriostasis
Ambient Temperature	5–40 °C
Ambient Humidity	≤85 % RH
