Products Introduction

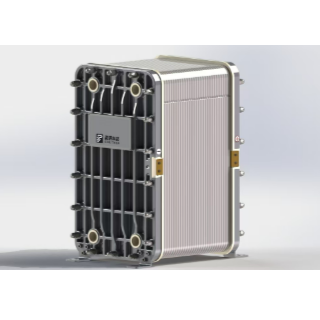

The ALK type hydrogen peroxide synthesis stack is independently designed, developed, and produced by Epai Technology. It has excellent performance in bipolar plate design and stack packaging, and can produce alkaline hydrogen peroxide solutions with concentrations ranging from 1% to 3.5%.

Product Features

01

Compact structural design helps to reduce stack volume, improve space utilization and productivity;
02

Scientific gas-liquid flow channel design, optimized rectification zone through computational fluid dynamics technology, enhanced turbulence effect, and evenly distributed flow field;
03

Good scalability, capable of combining 1-50 electrolytic cells and flexibly adapting to multiple application scenarios.

Product Technical Parameters

ALK stack performance parameters
Stack size (mm)	500×270×420
Hydrogen peroxide production capacity (kg/h)	3.0
Electrode size (mm)	200×250
Number of small rooms (pieces)	30
Hydrogen peroxide concentration (%)	2.5-3.0
3% hydrogen peroxide production (L/h)	100
Hydrogen peroxide pH value	＞11.0

Product Applications

Integrated into various types of integrated equipment

Generate alkaline hydrogen peroxide solution for bleaching treatment

Integrated into various types of integrated equipment

Generate alkaline hydrogen peroxide solution for bleaching treatment

Integrated into various types of integrated equipment

Generate alkaline hydrogen peroxide solution for bleaching treatment
