Products Introduction

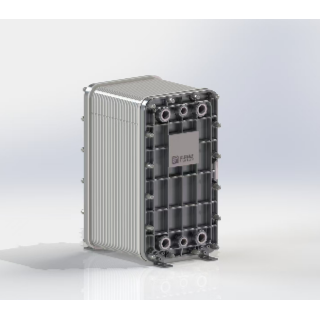

The solid-state electrolyte hydrogen peroxide synthesis dedicated fuel cell is independently designed, developed, and produced by Epai Technology, with excellent performance in bipolar plate and solid-state electrolyte layer design, as well as fuel cell packaging.

Product Features

01

Special stack packaging design can reduce ohmic impedance and minimize energy loss;
02

Independently developed solid electrolyte layer can optimize the hydrogen peroxide discharge path, while facilitating assembly and saving labor;
03

The patented bipolar plate structure can improve fluid distribution uniformity, reduce local overheating risk, and enhance stack stability

Product Technical Parameters

SE stack performance parameters
Stack size (mm)	500×270×420
Hydrogen peroxide production capacity (kg/h)	1.5
Electrode size (mm)	200×250
Number of small rooms (pieces)	30
Hydrogen peroxide concentration (%)	2.5-3.0
3% hydrogen peroxide production (L/h)	33.3-100
Hydrogen peroxide pH value	6.0-7.0

Product Applications

Can be integrated into various water treatment systems to produce hydrogen peroxide solution, and combined with ultraviolet/O3/Fe2+technology to construct advanced oxidation systems

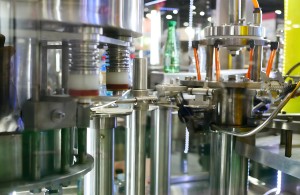

Can be integrated into food processing equipment such as beverage filling machines, producing hydrogen peroxide solution for equipment cleaning and sterilization

Can be integrated into food purification equipment to generate hydrogen peroxide solution for equipment cleaning and sterilization
