Products Introduction

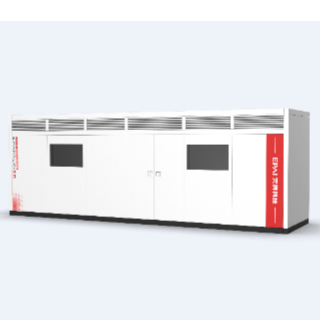

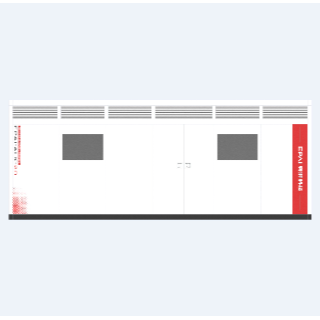

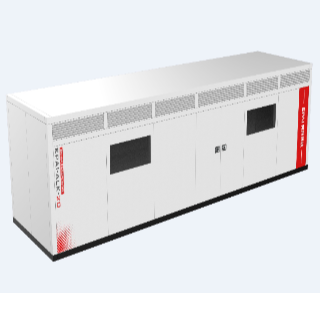

The HP-ALK-20 hydrogen peroxide generator is a product designed by Epai Technology specifically for bleaching process applications in large paper and textile factories. The product is equipped with 20 ALK type stacks and can produce 2000L of hydrogen peroxide solution (concentration 3%) per hour.

Product Features

01

High safety: The concentration of hydrogen peroxide produced by the green electrochemical synthesis equipment is 2.5% -3.5%, which is lower than the concentration limit of 8% for easily explosive hazardous chemicals, and there is no risk of explosion;
02

More convenient: No need to set up separate hazardous chemical storage warehouses, no need for manual mixing and dilution;
03

More efficient: The electrochemically synthesized hydrogen peroxide solution has higher purity, better stability, and thus better bleaching effect.

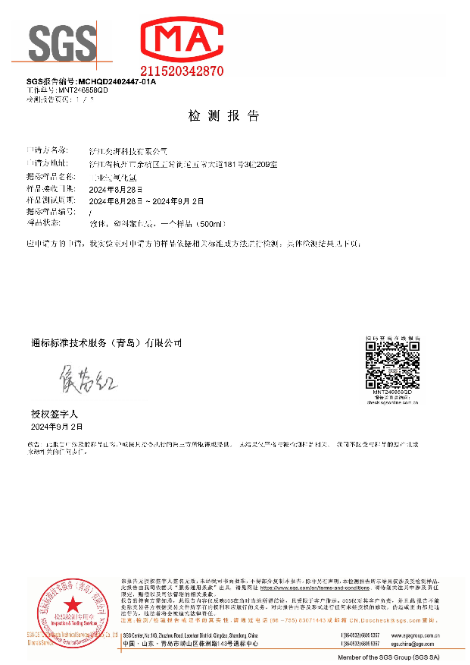

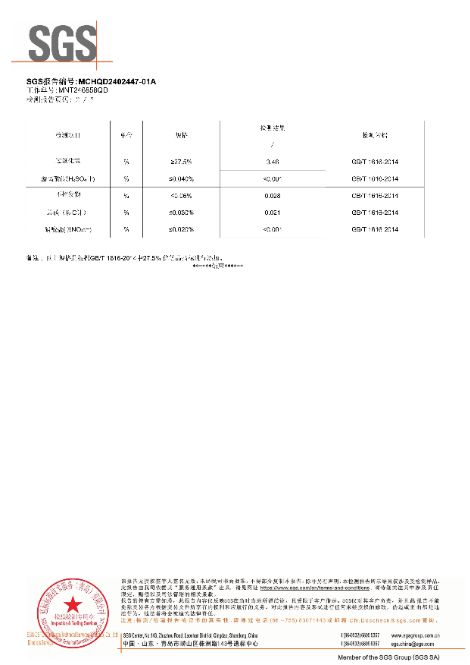

Product Test Report

According to SGS China inspection, the alkaline hydrogen peroxide produced by Epai Technology's electrochemical synthesis method has significantly lower impurities such as organic acids, non-volatile substances, phosphates, total carbon, and nitrates than the limit values in GB/T 1616-2014 Industrial Hydrogen Peroxide.

Product Technical Parameters

HP-ALK-20 hydrogen peroxide generator (can be configured with 6-20 stacks according to demand)
Configure standard stack quantity	20
Hydrogen peroxide production capacity (kg/h)	60.0（100%Concentration)
Hydrogen peroxide concentration in effluent (%)	2.5-3.0
3% hydrogen peroxide production (L/h)	2000
Hydrogen peroxide pH value	11.0-11.5
Equipment power (kW)	240
Equipment size (m)	L13.0×W2.2×H2.6

Installation Conditions

Equipment installation, environment and safety
Voltage requirements	380V
protection grade	IP54（indoor）
Ambient temperature	5-40℃
Ambient humidity	0-85%RH
Water inlet pressure	≥0.3MPa
Inlet water flow	≥2.5t/h
Inlet conductivity	≤10μS/cm
Oxygen inlet pressure	≥0.2MPa
Oxygen inlet flow rate	≥50m³/h
Oxygen purity	≥93%
