2e ORR self breathing electrode
Electrode material
奕湃
Products Introduction

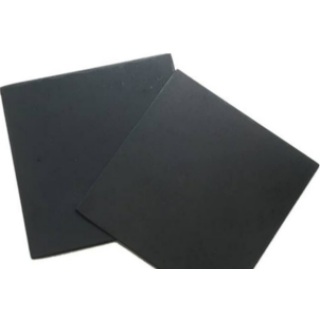

The 2e ORR self breathing electrode is a two electron oxygen reduction cathode material independently developed by Epai Technology. The material uses carbon paper as the carrier, modified carbon material independently developed by Epai Technology as the catalyst, PTFE material as the hydrophobic agent, and is made through a narrow slit extrusion coating process. The production of low concentration hydrogen peroxide solution and high concentration hydrogen peroxide solution in discontinuous electrolysis processes can be achieved through different electrolytic cell designs.
Product Features
  • 01
    Without the need for additional gas supply devices, oxygen required for the reaction can be directly obtained from the surrounding environment;
  • 02
    Efficient mass transfer performance, achieved through the construction of gradient hydrophobic layers, enables efficient transport of reaction gases;
  • 03
    Good reaction kinetics can achieve high reaction rates and efficiency at lower overpotentials.
Product Technical Parameters

Index

Performance

Notes

Catalyst loading capacity

1.5-2mg/cm2

/

Electrode size

customizable

Maximum 400mm × 600mm

Electrode catalytic activity

<2.5 V

@150 mA/cm2

Electrode selectivity

>90%

H2O2浓度0.1-1.0%

Electrode hydrophobicity

>130°

Three-phase contact angle

Electrode stability

>1000 h

@150 mA/cm2


Product Applications

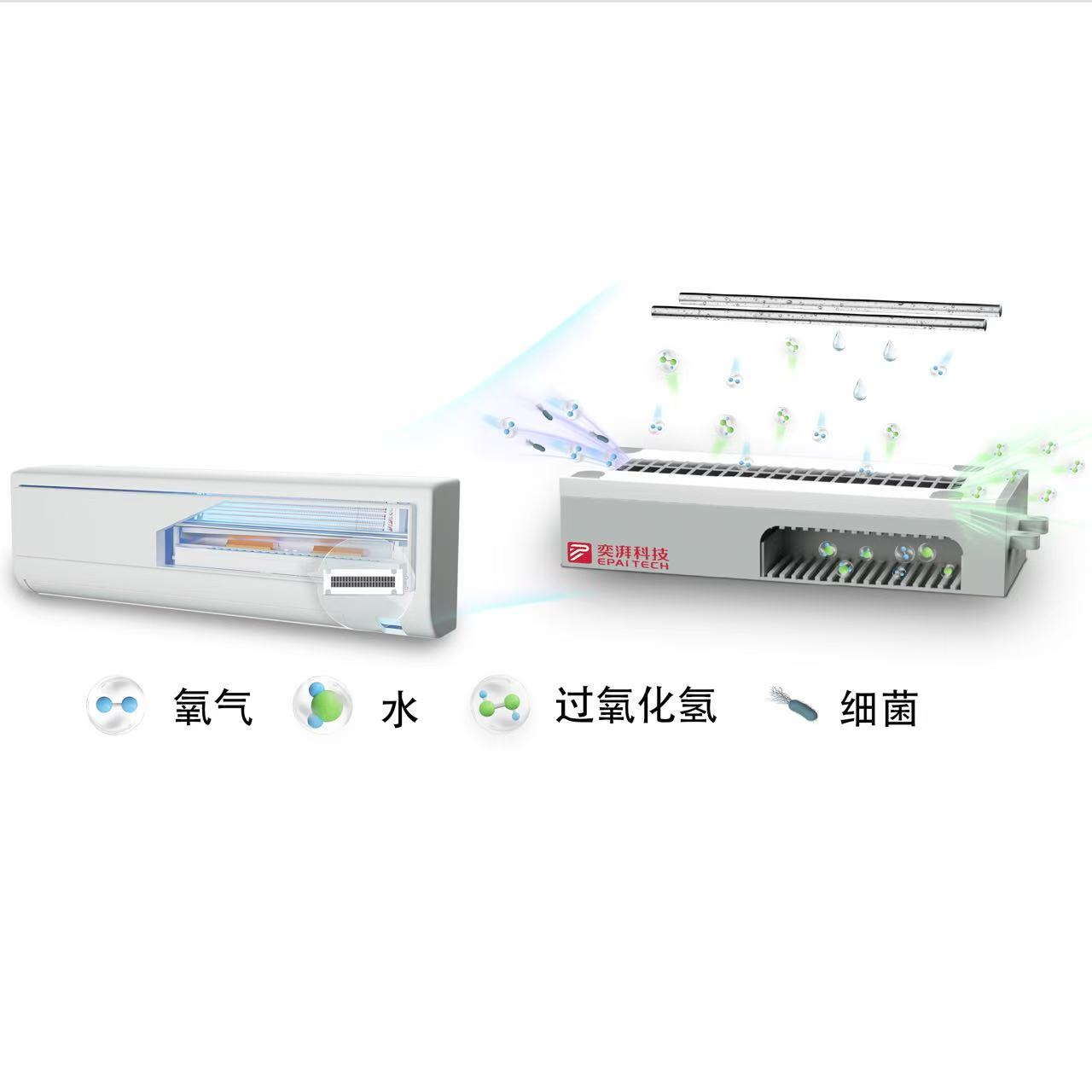

Atomizer
Atomizer
Used in household appliances to produce sterilizing water containing hydrogen peroxide
Robotic vacuum cleaner
Robotic vacuum cleaner
Used in household appliances to produce sterilizing water containing hydrogen peroxide
Closestool
Closestool
Used in household appliances to produce sterilizing water containing hydrogen peroxide
