Products Introduction

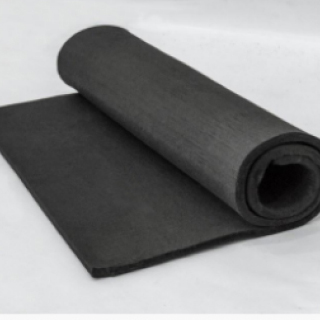

The 2e ORR flexible graphite electrode is a two electron oxygen reduction cathode material independently developed by Epai Technology. The material uses graphite felt as a carrier and modified carbon material independently developed by Epai Technology as a catalyst, and is made through electrophoretic adsorption process. Low concentration hydrogen peroxide solution and high concentration alkaline hydrogen peroxide solution can be prepared through different electrolytic cell designs.

Product Features

01

Good conductivity ensures rapid electron transfer in the electrode, reduces system internal resistance, and improves electrolysis efficiency;
02

High specific surface area can provide more reaction sites for oxygen reduction reactions;
03

Excellent chemical stability, able to maintain stability in various chemical environments such as acid and alkali, and possessing strong corrosion resistance;
04

Good mechanical performance, easy to process and install, and not easily damaged during long-term use.

Product Technical Parameters

Index	Performance	Notes
Electrode thickness	2-8㎜	Thickness can be customized
Electrode size	customizable	maximum500㎜X500㎜
Bulk density	＞0.12g/cm³	/
Surface density	800~1000g/cm²	/
Catalyst loading capacity	3-5mg/cm²	/
Electrode catalytic activity	＜2.0 V	@350 mA/cm ² (in alkaline solution system)
Electrode selectivity	＞90°	H ₂ 0 ₂ concentration 2.5-3% (in alkaline solution system)
Electrode hydrophobicity	＞140°	Three-phase contact angle
Electrode stability	＞10000h	@350 mA/cm ² (in alkaline solution system)

Product Applications

Atomizer

Used in household appliances to produce sterilizing water containing hydrogen peroxide

Robotic vacuum cleaner

Used in household appliances to produce sterilizing water containing hydrogen peroxide

Closestool

Used in household appliances to produce sterilizing water containing hydrogen peroxide
